Brand Name : | Prima |
Model Number : | PRS-001 |
Certification : | CE,AS/NZS2208,ANSIZ97.1 |
Price : | Negotiable |
Payment Terms : | D/A, L/C, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 2000 meters per month |
Delivery Time : | 35-40 days after Shop Drawing Confirmed |

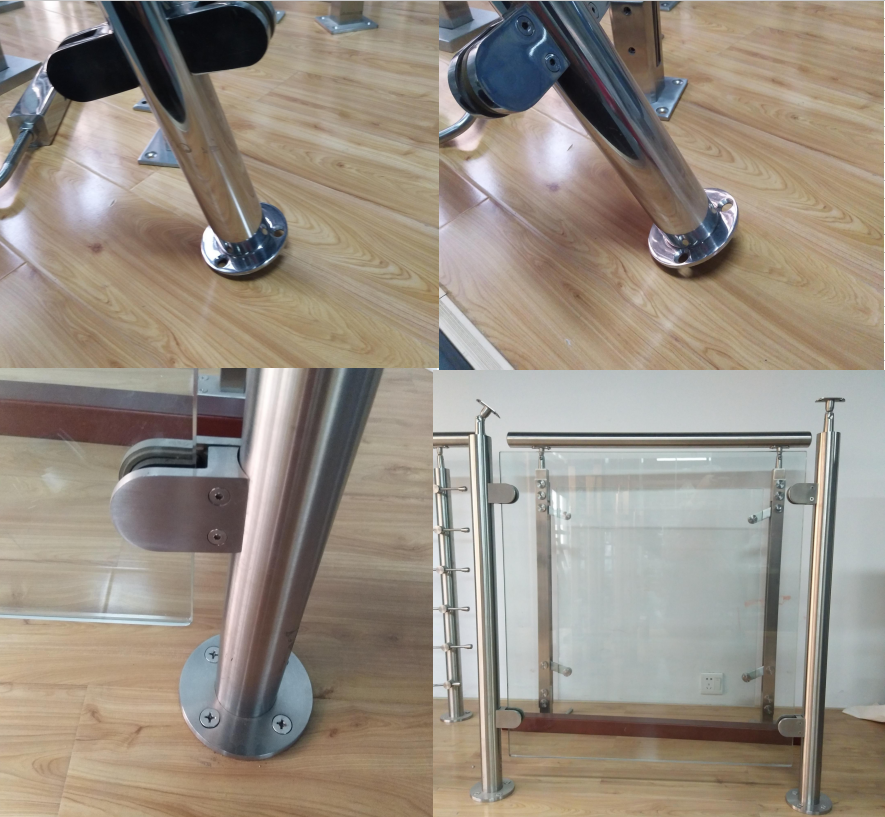

Indoor 304 Stainless steel glass railing for stair railing design
Description:
1. Stainless steel glass railing can be applied in stair, balcony,terrace,deck etc.
2. Installation method have face mounted and side mounted.
3. Specification and Materials can be customized as customer's project.
4. Material grade is 304 stainless steel for indoor; 316 stainless steel for outdoor.
5. OEM/ODM is welcomed.
6. Delivery time will be as the contract time, about 35-40 days.
7. Free design and shop drawing will be provided for you as your project.
8. Certification: CE,AS/NZS2208,ANSIZ97.1, so we will provide you a good quality, please be aasured it.
Specification:
Maximum Centres | 1200mm | Post Finishes | Satin or Mirrior |
Material Grades | Grade 304(interior) Grade 316(exterior) | Glass options | Coloured, Laminated, Clear, Frosted |
Glass Thickness | 10/12mm thoughened glass 6+1.52+6mm/8+1.52+8mm laminated glass | Base plates available | dia100mm*8mm cover 100*100*8mm cover |
Standard Height | 1000mm 1067mm(42inches) 1100mm 1200mm | Comaptible fixings | wood,metal,brick,concrete |
Post&Glass measurements | Made to shop drawing | Post construction | Welded base plate Glass clamps Tube support to stop |
Tube option | Round: 50.8/42.4/38mm Square:50*50mm rectangle:50*25mm | Top Handrail Wall Thicknessfo Tube | Can be same with post 1.2/1.35/1.5/2.0mm |
![]() |
